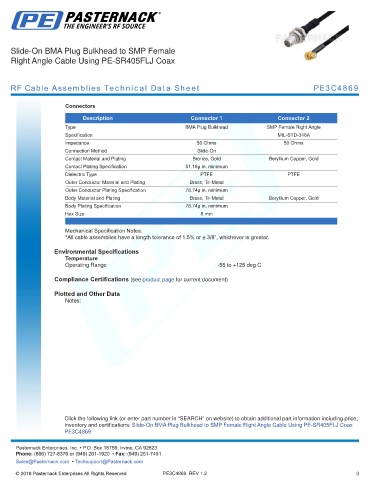

Slide-On BMA Plug Bulkhead to SMP Female
Right Angle Cable Using PE-SR405FLJ Coax

RF Cable Assemblies Technical Data Sheet PE3C4869

Connectors

Description Connector 1 Connector 2
Type BMA Plug Bulkhead SMP Female Right Angle
Specification MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Connection Method Slide-On
Contact Material and Plating Bronze, Gold Beryllium Copper, Gold
Contact Plating Specification 51.18µ in. minimum
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Brass, Tri-Metal
Outer Conductor Plating Specification 78.74µ in. minimum
Body Material and Plating Brass, Tri-Metal Beryllium Copper, Gold
Body Plating Specification 78.74µ in. minimum
Hex Size 8 mm
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Plug Bulkhead to SMP Female Right Angle Cable Using PE-SR405FLJ Coax
PE3C4869 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4869 REV 1.2 3
