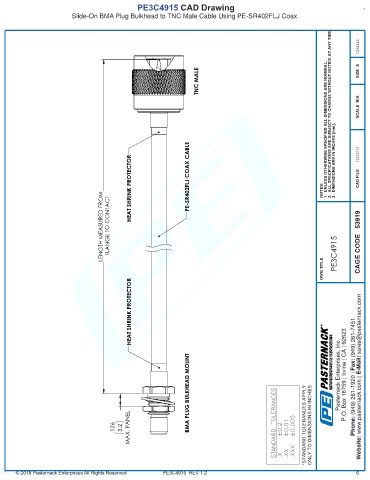

PE3C4915 CAD Drawing
Slide-On BMA Plug Bulkhead to TNC Male Cable Using PE-SR402FLJ Coax

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOU T NOTICE AT ANY TIME.


1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
 SIZE A

SCALE N/A

  NOTES: 3. DIMENSIONS ARE IN INCHES [mm].  CAD FILE

  CAGE CODE 53919

DWG TITLE 

 R E-Mail: sales@pasternack.com

 Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451




    *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES - Website: www.pasternack.com |
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4915 REV 1.2 6
