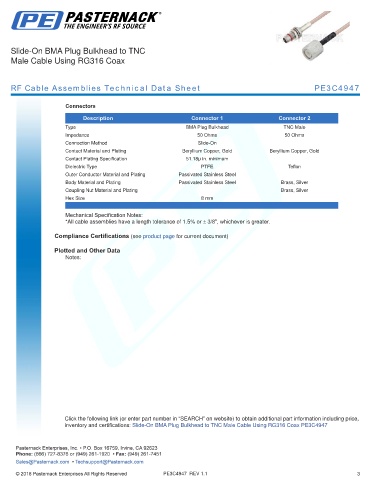

Slide-On BMA Plug Bulkhead to TNC
Male Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C4947

Connectors

Description Connector 1 Connector 2
Type BMA Plug Bulkhead TNC Male
Impedance 50 Ohms 50 Ohms
Connection Method Slide-On
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification 51.18µ in. minimum
Dielectric Type PTFE Teflon
Outer Conductor Material and Plating Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel Brass, Silver
Coupling Nut Material and Plating Brass, Silver
Hex Size 8 mm
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Plug Bulkhead to TNC Male Cable Using RG316 Coax PE3C4947
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4947 REV 1.1 3
