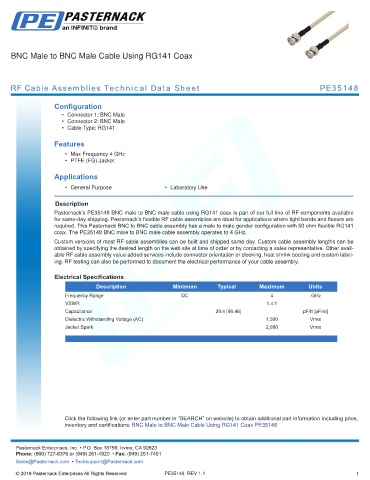

BNC Male to BNC Male Cable Using RG141 Coax

RF Cable Assemblies Technical Data Sheet PE35148

Configuration
• Connector 1: BNC Male
• Connector 2: BNC Male
• Cable Type: RG141

Features
• Max Frequency 4 GHz
• PTFE (FG) Jacket

Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE35148 BNC male to BNC male cable using RG141 coax is part of our full line of RF components available
for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and flexure are
required. This Pasternack BNC to BNC cable assembly has a male to male gender configuration with 50 ohm flexible RG141
coax. The PE35148 BNC male to BNC male cable assembly operates to 4 GHz.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.4:1
Capacitance 29.4 [96.46] pF/ft [pF/m]
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Jacket Spark 2,000 Vrms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Cable Using RG141 Coax PE35148
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE35148 REV 1.1 1
