MIL-DTL-17 N Female to TNC Male Cable
Using M17/128-RG400 Coax

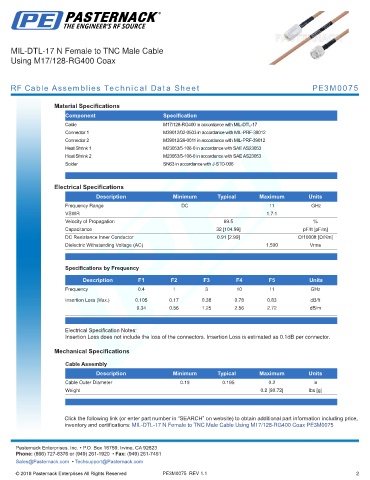

RF Cable Assemblies Technical Data Sheet PE3M0075

Material Specifications
Component Specification
Cable M17/128-RG400 in accordance with MIL-DTL-17
Connector 1 M39012/02-0503 in accordance with MIL-PRF-39012
Connector 2 M39012/26-0011 in accordance with MIL-PRF-39012
Heat Shrink 1 M23053/5-106-0 in accordance with SAE AS23053
Heat Shrink 2 M23053/5-106-0 in accordance with SAE AS23053
Solder SN63 in accordance with J-STD-006

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.7:1
Velocity of Propagation 69.5 %
Capacitance 32 [104.99] pF/ft [pF/m]
DC Resistance Inner Conductor 0.91 [2.99] Ω/1000ft [Ω/Km]
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.
Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.4 1 3 10 11 GHz
Insertion Loss (Max.) 0.105 0.17 0.38 0.78 0.83 dB/ft
0.34 0.56 1.25 2.56 2.72 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1dB per connector.

Mechanical Specifications
Cable Assembly
Description Minimum Typical Maximum Units
Cable Outer Diameter 0.19 0.195 0.2 in
Weight 0.2 [90.72] lbs [g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MIL-DTL-17 N Female to TNC Male Cable Using M17/128-RG400 Coax PE3M0075
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3M0075 REV 1.1 2
