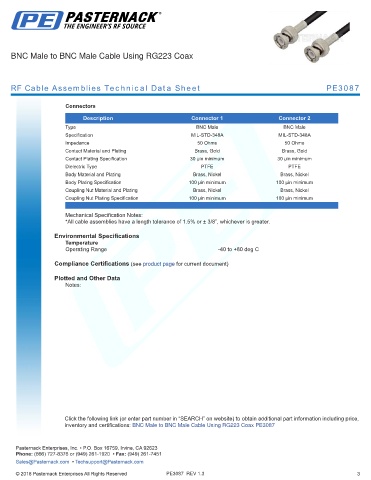

Page 140 - BNC to N RF Cable Assembly Datasheets

BNC Male to BNC Male Cable Using RG223 Coax

RF Cable Assemblies Technical Data Sheet PE3087

Connectors

Description Connector 1 Connector 2
Type BNC Male BNC Male
Specification MIL-STD-348A MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification 30 µin minimum 30 µin minimum
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100 µin minimum 100 µin minimum
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Plating Specification 100 µin minimum 100 µin minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -40 to +80 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Cable Using RG223 Coax PE3087
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3087 REV 1.3 3
