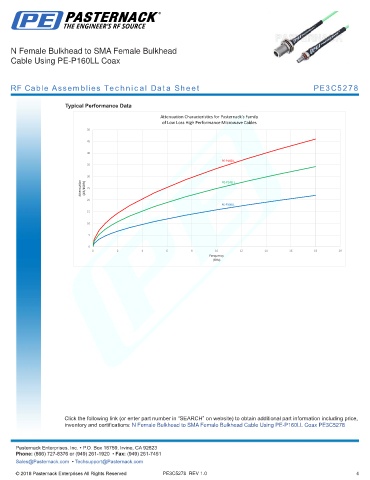

N Female Bulkhead to SMA Female Bulkhead
Cable Using PE-P160LL Coax

RF Cable Assemblies Technical Data Sheet PE3C5278

Typical Performance Data
Attenuation Characteristics for Pasternack's Family
of Low Loss High Performance Microwave Cables
50

45
40
PE-P160LL
35
30 PE-P142LL
Attenuation (dB/100ft) 25

20
PE-P300LL
15

10
5
0
0 2 4 6 8 10 12 14 16 18 20
Frequency
(GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to SMA Female Bulkhead Cable Using PE-P160LL Coax PE3C5278
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C5278 REV 1.0 4
