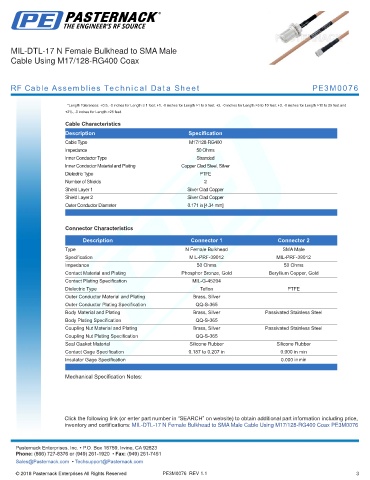

MIL-DTL-17 N Female Bulkhead to SMA Male
Cable Using M17/128-RG400 Coax

RF Cable Assemblies Technical Data Sheet PE3M0076

*Length Tolerances: +0.5, -0 inches for Length ≤ 1 foot; +1, -0 inches for Length >1 to 5 feet; +2, -0 inches for Length >5 to 10 feet; +3, -0 inches for Length >10 to 25 feet and
+2%, -0 inches for Length >25 feet.

Cable Characteristics
Description Specification
Cable Type M17/128-RG400
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Clad Copper
Shield Layer 2 Silver Clad Copper
Outer Conductor Diameter 0.171 in [4.34 mm]
.

Connector Characteristics

Description Connector 1 Connector 2
Type N Female Bulkhead SMA Male
Specification MIL-PRF-39012 MIL-PRF-39012
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Phosphor Bronze, Gold Beryllium Copper, Gold
Contact Plating Specification MIL-G-45204
Dielectric Type Teflon PTFE
Outer Conductor Material and Plating Brass, Silver
Outer Conductor Plating Specification QQ-S-365
Body Material and Plating Brass, Silver Passivated Stainless Steel
Body Plating Specification QQ-S-365
Coupling Nut Material and Plating Brass, Silver Passivated Stainless Steel
Coupling Nut Plating Specification QQ-S-365
Seal Gasket Material Silicone Rubber Silicone Rubber
Contact Gage Specification 0.187 to 0.207 in 0.000 in min
Insulator Gage Specification 0.000 in min
.
Mechanical Specification Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MIL-DTL-17 N Female Bulkhead to SMA Male Cable Using M17/128-RG400 Coax PE3M0076
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3M0076 REV 1.1 3
