N Female Bulkhead to SMA Male Right Angle
Low Loss Cable Using PE-P160LL Coax

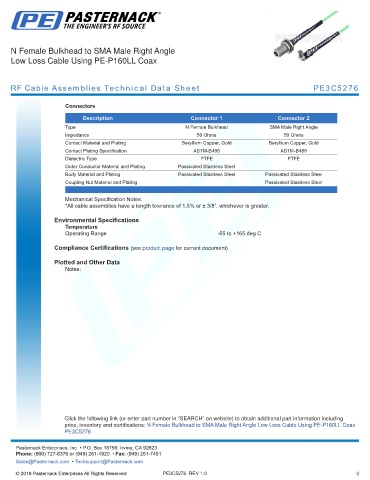

RF Cable Assemblies Technical Data Sheet PE3C5276

Connectors

Description Connector 1 Connector 2
Type N Female Bulkhead SMA Male Right Angle
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification ASTM-B488 ASTM-B488
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Material and Plating Passivated Stainless Steel
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Environmental Specifications
Temperature
Operating Range -55 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Female Bulkhead to SMA Male Right Angle Low Loss Cable Using PE-P160LL Coax
PE3C5276 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
