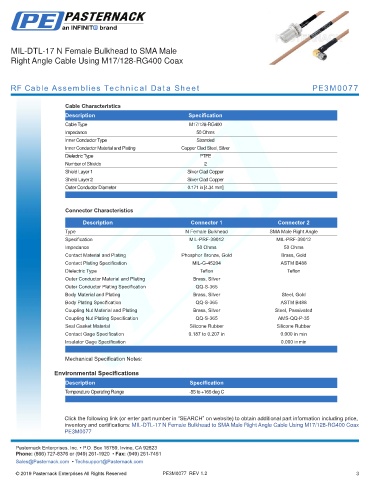

MIL-DTL-17 N Female Bulkhead to SMA Male
Right Angle Cable Using M17/128-RG400 Coax

RF Cable Assemblies Technical Data Sheet PE3M0077

Cable Characteristics
Description Specification
Cable Type M17/128-RG400
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Clad Copper
Shield Layer 2 Silver Clad Copper
Outer Conductor Diameter 0.171 in [4.34 mm]
.

Connector Characteristics
Description Connector 1 Connector 2
Type N Female Bulkhead SMA Male Right Angle
Specification MIL-PRF-39012 MIL-PRF-39012
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Phosphor Bronze, Gold Brass, Gold
Contact Plating Specification MIL-G-45204 ASTM B488
Dielectric Type Teflon Teflon
Outer Conductor Material and Plating Brass, Silver
Outer Conductor Plating Specification QQ-S-365
Body Material and Plating Brass, Silver Steel, Gold
Body Plating Specification QQ-S-365 ASTM B488
Coupling Nut Material and Plating Brass, Silver Steel, Passivated
Coupling Nut Plating Specification QQ-S-365 AMS-QQ-P-35
Seal Gasket Material Silicone Rubber Silicone Rubber
Contact Gage Specification 0.187 to 0.207 in 0.000 in min
Insulator Gage Specification 0.000 in min
.
Mechanical Specification Notes:

Environmental Specifications
Description Specification
Temperature Operating Range -55 to +165 deg C
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MIL-DTL-17 N Female Bulkhead to SMA Male Right Angle Cable Using M17/128-RG400 Coax
PE3M0077 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
