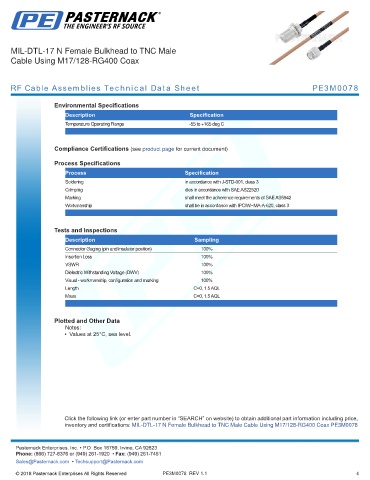

MIL-DTL-17 N Female Bulkhead to TNC Male
Cable Using M17/128-RG400 Coax

RF Cable Assemblies Technical Data Sheet PE3M0078

Environmental Specifications
Description Specification
Temperature Operating Range -55 to +165 deg C
.

Compliance Certifications (see product page for current document)

Process Specifications
Process Specification
Soldering in accordance with J-STD-001, class 3
Crimping dies in accordance with SAE AS22520
Marking shall meet the adherence requirements of SAE AS5942
Workmanship shall be in accordance with IPC/WHMA-A-620, class 3
.

Tests and Inspections
Description Sampling
Connector Gaging (pin and insulator position) 100%
Insertion Loss 100%
VSWR 100%
Dielectric Withstanding Voltage (DWV) 100%
Visual - workmanship, configuration and marking 100%
Length C=0, 1.5 AQL
Mass C=0, 1.5 AQL
.

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MIL-DTL-17 N Female Bulkhead to TNC Male Cable Using M17/128-RG400 Coax PE3M0078
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3M0078 REV 1.1 4
