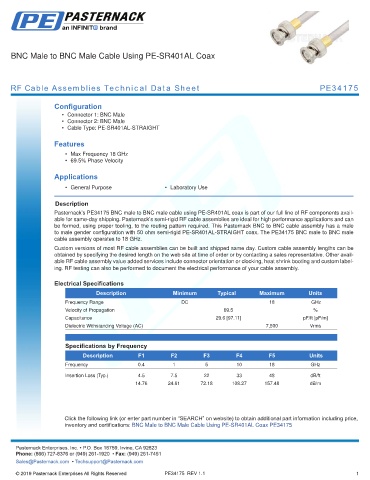

BNC Male to BNC Male Cable Using PE-SR401AL Coax
RF Cable Assemblies Technical Data Sheet PE34175
Configuration
• Connector 1: BNC Male
• Connector 2: BNC Male
• Cable Type: PE-SR401AL-STRAIGHT
Features
• Max Frequency 18 GHz
• 69.5% Phase Velocity
Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE34175 BNC male to BNC male cable using PE-SR401AL coax is part of our full line of RF components avail-
able for same-day shipping. Pasternack’s semi-rigid RF cable assemblies are ideal for high performance applications and can
be formed, using proper tooling, to the routing pattern required. This Pasternack BNC to BNC cable assembly has a male
to male gender configuration with 50 ohm semi-rigid PE-SR401AL-STRAIGHT coax. The PE34175 BNC male to BNC male
cable assembly operates to 18 GHz.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
Velocity of Propagation 69.5 %
Capacitance 29.6 [97.11] pF/ft [pF/m]
Dielectric Withstanding Voltage (AC) 7,500 Vrms
.
Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.4 1 5 10 18 GHz
Insertion Loss (Typ.) 4.5 7.5 22 33 48 dB/ft
14.76 24.61 72.18 108.27 157.48 dB/m
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Cable Using PE-SR401AL Coax PE34175
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE34175 REV 1.1 1
