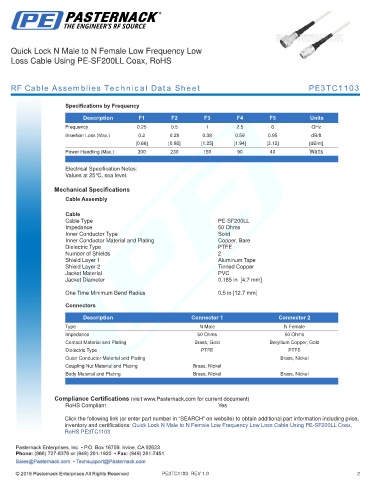

Quick Lock N Male to N Female Low Frequency Low
Loss Cable Using PE-SF200LL Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3TC1103

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.25 0.5 1 2.5 6 GHz
Insertion Loss (Max.) 0.2 0.28 0.38 0.59 0.95 dB/ft
[0.66] [0.92] [1.25] [1.94] [3.12] [dB/m]
Power Handling (Max.) 300 230 150 90 40 Watts
.
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Cable Assembly
.
Cable
Cable Type PE-SF200LL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Bare
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Aluminum Tape
Shield Layer 2 Tinned Copper
Jacket Material PVC
Jacket Diameter 0.185 in [4.7 mm]
.
One Time Minimum Bend Radius 0.5 in [12.7 mm]
Connectors

Description Connector 1 Connector 2
Type N Male N Female
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Beryllium Copper, Gold
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Brass, Nickel
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel Brass, Nickel
.

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Quick Lock N Male to N Female Low Frequency Low Loss Cable Using PE-SF200LL Coax,
RoHS PE3TC1103

PE3TC1103 REV 1.0 2
