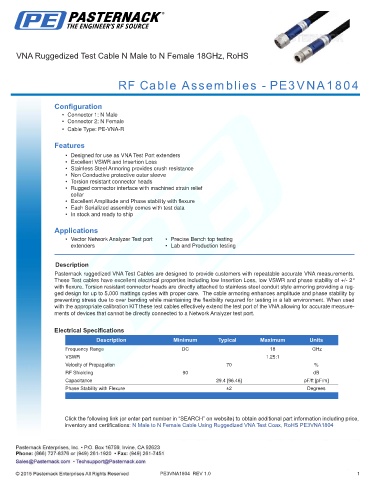

VNA Ruggedized Test Cable N Male to N Female 18GHz, RoHS

RF Cable Assemblies - PE3VNA1804

Configuration
• Connector 1: N Male
• Connector 2: N Female
• Cable Type: PE-VNA-R

Features
• Designed for use as VNA Test Port extenders
• Excellent VSWR and Insertion Loss
• Stainless Steel Armoring provides crush resistance
• Non Conductive protective outer sleeve
• Torsion resistant connector heads
• Rugged connector interface with machined strain relief
collar
• Excellent Amplitude and Phase stability with flexure
• Each Serialized assembly comes with test data
• In stock and ready to ship

Applications
• Vector Network Analyzer Test port • Precise Bench top testing
extenders • Lab and Production testing
.
Description
Pasternack ruggedized VNA Test Cables are designed to provide customers with repeatable accurate VNA measurements.
These Test cables have excellent electrical properties including low Insertion Loss, low VSWR and phase stability of +/- 2°
with flexure. Torsion resistant connector heads are directly attached to stainless steel conduit style armoring providing a rug-
ged design for up to 5,000 mattings cycles with proper care. The cable armoring enhances amplitude and phase stability by
preventing stress due to over bending while maintaining the flexibility required for testing in a lab environment. When used
with the appropriate calibration KIT these test cables effectively extend the test port of the VNA allowing for accurate measure-
ments of devices that cannot be directly connected to a Network Analyzer test port.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.25:1
Velocity of Propagation 70 %
RF Shielding 90 dB
Capacitance 29.4 [96.46] pF/ft [pF/m]
Phase Stability with Flexure ±2 Degrees
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to N Female Cable Using Ruggedized VNA Test Coax, RoHS PE3VNA1804

PE3VNA1804 REV 1.0 1
