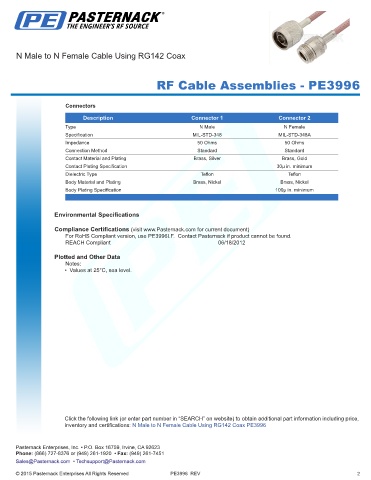

N Male to N Female Cable Using RG142 Coax
RF Cable Assemblies - PE3996
Connectors
Description Connector 1 Connector 2
Type N Male N Female
Specification MIL-STD-348 MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Connection Method Standard Standard
Contact Material and Plating Brass, Silver Brass, Gold
Contact Plating Specification 30µ in. minimum
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum
.
Environmental Specifications
Compliance Certifications (visit www.Pasternack.com for current document)
For RoHS Compliant version, use PE3996LF. Contact Pasternack if product cannot be found.
REACH Compliant 06/18/2012
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to N Female Cable Using RG142 Coax PE3996
PE3996 REV 2
