BNC Male to BNC Male Cable Using LMR-195 Coax

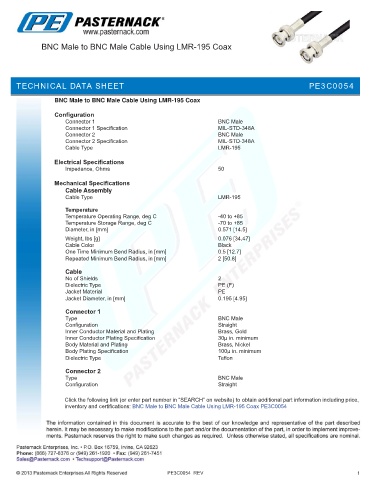

TECHNICAL D PE3C0054
TECHNICAL DATA SHEETATA SHEET

BNC Male to BNC Male Cable Using LMR-195 Coax

Configuration
Connector 1 BNC Male
Connector 1 Specification MIL-STD-348A
Connector 2 BNC Male
Connector 2 Specification MIL-STD-348A
Cable Type LMR-195

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Cable Assembly
Cable Type LMR-195
Temperature
Temperature Operating Range, deg C -40 to +85
Temperature Storage Range, deg C -70 to +85
Diameter, in [mm] 0.571 [14.5]
.
Weight, lbs [g] 0.076 [34.47]
Cable Color Black
One Time Minimum Bend Radius, in [mm] 0.5 [12.7]
Repeated Minimum Bend Radius, in [mm] 2 [50.8]

Cable
No of Shields 2
Dielectric Type PE (F)
Jacket Material PE
Jacket Diameter, in [mm] 0.195 [4.95]
Connector 1
Type BNC Male
Configuration Straight
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Connector 2
Type BNC Male
Configuration Straight

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Cable Using LMR-195 Coax PE3C0054

PE3C0054 REV 1
