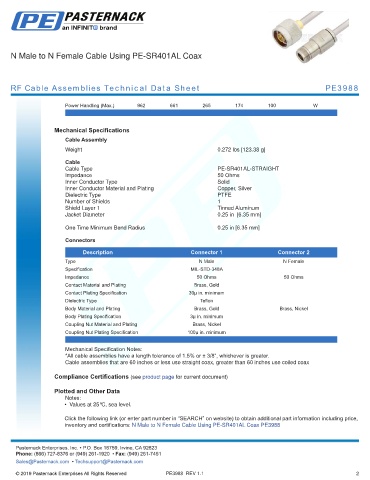

N Male to N Female Cable Using PE-SR401AL Coax

RF Cable Assemblies Technical Data Sheet PE3988

Power Handling (Max.) 962 661 265 174 100 W
.

Mechanical Specifications
Cable Assembly
.
Weight 0.272 lbs [123.38 g]

Cable
Cable Type PE-SR401AL-STRAIGHT
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Tinned Aluminum
Jacket Diameter 0.25 in [6.35 mm]
.
One Time Minimum Bend Radius 0.25 in [6.35 mm]

Connectors
Description Connector 1 Connector 2
Type N Male N Female
Specification MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Dielectric Type Teflon
Body Material and Plating Brass, Gold Brass, Nickel
Body Plating Specification 3µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Cable assemblies that are 60 inches or less use straight coax, greater than 60 inches use coiled coax

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to N Female Cable Using PE-SR401AL Coax PE3988
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3988 REV 1.1 2
