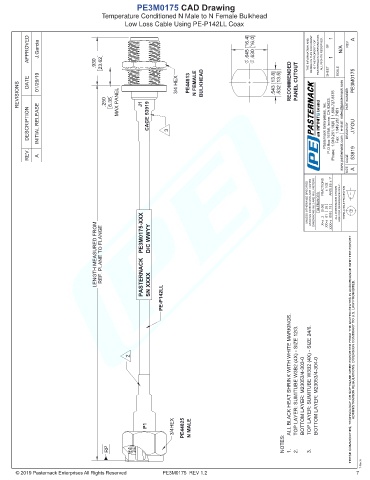

PE3M0175 CAD Drawing
Temperature Conditioned N Male to N Female Bulkhead
Low Loss Cable Using PE-P142LL Coax

APPROVED J.Garcia .930 23.62 .645 [16.4] .630 [16.0] THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1 1 SCALE N/A REV A

REVISIONS DATE 01/29/19 .250 6.35 MAX PANEL J1 3/4 HEX PE44813 N FEMALE BULKHEAD .543 [13.8] .532 [13.5] RECOMMENDED PANEL CUTOUT PART NUMBER PE3M0175

DESCRIPTION INITIAL RELEASE CAGE 53919 3 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM REF. PLANE TO FLANGE PE3M0175-XXX D/C WWYY

PASTERNACK

SN XXXX

PE-P142LL

2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
BOTTOM LAYER: M23053/4-303-0 3. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 24/6. BOTTOM LAYER: M23053/4-304-0

3/4HEX PE44825 N MALE -
P1
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
RP NOTES: 1. 2.

T-Rev.A
