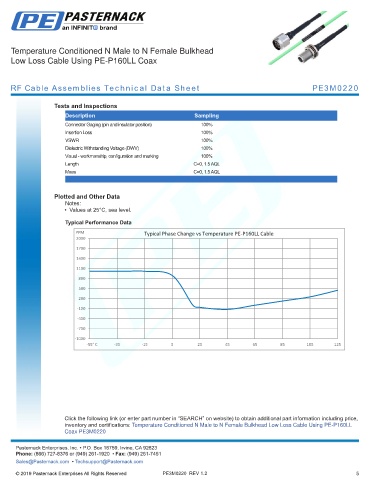

Temperature Conditioned N Male to N Female Bulkhead
Low Loss Cable Using PE-P160LL Coax

RF Cable Assemblies Technical Data Sheet PE3M0220

Tests and Inspections
Description Sampling
Connector Gaging (pin and insulator position) 100%
Insertion Loss 100%
VSWR 100%
Dielectric Withstanding Voltage (DWV) 100%
Visual - workmanship, configuration and marking 100%
Length C=0, 1.5 AQL
Mass C=0, 1.5 AQL
.

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Typical Performance Data
PPM Typical Phase Change vs Temperature PE-P160LL Cable
2000

1700
1400
1100
800
500
200
-100
-400
-700
-1000
-55° C -35 -15 5 25 45 65 85 105 125

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Temperature Conditioned N Male to N Female Bulkhead Low Loss Cable Using PE-P160LL
Coax PE3M0220 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3M0220 REV 1.2 5
