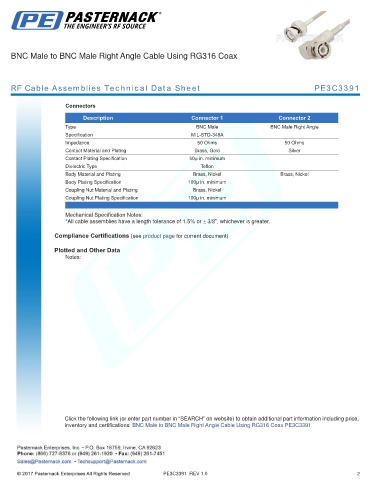

BNC Male to BNC Male Right Angle Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C3391

Connectors

Description Connector 1 Connector 2
Type BNC Male BNC Male Right Angle
Specification MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Silver
Contact Plating Specification 50µ in. minimum
Dielectric Type Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Right Angle Cable Using RG316 Coax PE3C3391

PE3C3391 REV 1.0 2
