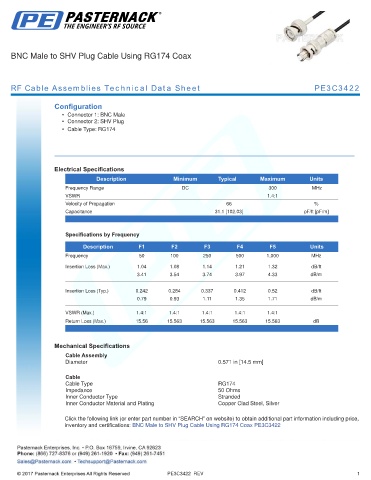

BNC Male to SHV Plug Cable Using RG174 Coax

RF Cable Assemblies Technical Data Sheet PE3C3422

Configuration
• Connector 1: BNC Male
• Connector 2: SHV Plug
• Cable Type: RG174

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.4:1
Velocity of Propagation 66 %
Capacitance 31.1 [102.03] pF/ft [pF/m]
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz
Insertion Loss (Max.) 1.04 1.08 1.14 1.21 1.32 dB/ft
3.41 3.54 3.74 3.97 4.33 dB/m

Insertion Loss (Typ.) 0.242 0.284 0.337 0.412 0.52 dB/ft
0.79 0.93 1.11 1.35 1.71 dB/m

VSWR (Max.) 1.4:1 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss (Max.) 15.56 15.563 15.563 15.563 15.563 dB
.

Mechanical Specifications
Cable Assembly
Diameter 0.571 in [14.5 mm]
.
Cable
Cable Type RG174
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to SHV Plug Cable Using RG174 Coax PE3C3422

PE3C3422 REV 1
