N Male to TNC Male Right Angle Low Loss
Cable Using PE-P160LL Coax

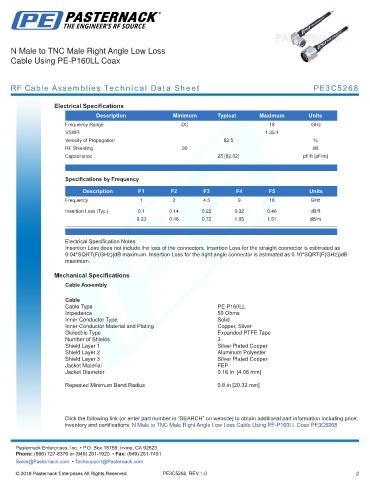

RF Cable Assemblies Technical Data Sheet PE3C5268

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.35:1
Velocity of Propagation 82.5 %
RF Shielding 90 dB
Capacitance 25 [82.02] pF/ft [pF/m]
.
Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 1 2 4.5 9 18 GHz
Insertion Loss (Typ.) 0.1 0.14 0.22 0.32 0.46 dB/ft
0.33 0.46 0.72 1.05 1.51 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss for the straight connector is estimated as
0.04*SQRT(F(GHz))dB maximum. Insertion Loss for the right angle connector is estimated as 0.10*SQRT(F(GHz))dB
maximum.

Mechanical Specifications
Cable Assembly
.
Cable
Cable Type PE-P160LL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type Expanded PTFE Tape
Number of Shields 3
Shield Layer 1 Silver Plated Copper
Shield Layer 2 Aluminum Polyester
Shield Layer 3 Silver Plated Copper
Jacket Material FEP
Jacket Diameter 0.16 in [4.06 mm]
.
Repeated Minimum Bend Radius 0.8 in [20.32 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to TNC Male Right Angle Low Loss Cable Using PE-P160LL Coax PE3C5268
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C5268 REV 1.0 2
