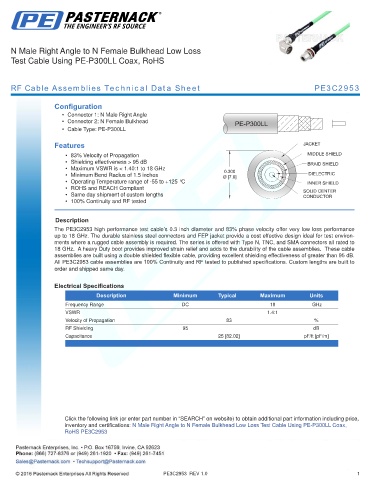

N Male Right Angle to N Female Bulkhead Low Loss
Test Cable Using PE-P300LL Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3C2953

Configuration
• Connector 1: N Male Right Angle
• Connector 2: N Female Bulkhead
• Cable Type: PE-P300LL

Features
• 83% Velocity of Propagation
• Shielding effectiveness > 95 dB
• Maximum VSWR is < 1.40:1 to 18 GHz
• Minimum Bend Radius of 1.5 inches
• Operating Temperature range of -55 to +125 °C
• ROHS and REACH Compliant
• Same day shipment of custom lengths
• 100% Continuity and RF tested
.
Description
The PE3C2953 high performance test cable’s 0.3 inch diameter and 83% phase velocity offer very low loss performance
up to 18 GHz. The durable stainless steel connectors and FEP jacket provide a cost effective design ideal for test environ-
ments where a rugged cable assembly is required. The series is offered with Type N, TNC, and SMA connectors all rated to
18 GHz. A heavy Duty boot provides improved strain relief and adds to the durability of the cable assemblies. These cable
assemblies are built using a double shielded flexible cable, providing excellent shielding effectiveness of greater than 95 dB.
All PE3C2953 cable assemblies are 100% Continuity and RF tested to published specifications. Custom lengths are built to
order and shipped same day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.4:1
Velocity of Propagation 83 %
RF Shielding 95 dB
Capacitance 25 [82.02] pF/ft [pF/m]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to N Female Bulkhead Low Loss Test Cable Using PE-P300LL Coax,
RoHS PE3C2953

PE3C2953 REV 1.0 1
