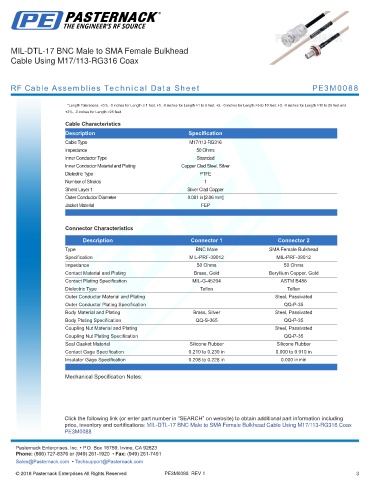

MIL-DTL-17 BNC Male to SMA Female Bulkhead
Cable Using M17/113-RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3M0088

*Length Tolerances: +0.5, -0 inches for Length ≤ 1 foot; +1, -0 inches for Length >1 to 5 feet; +2, -0 inches for Length >5 to 10 feet; +3, -0 inches for Length >10 to 25 feet and
+2%, -0 inches for Length >25 feet.

Cable Characteristics
Description Specification
Cable Type M17/113-RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Clad Copper
Outer Conductor Diameter 0.081 in [2.06 mm]
Jacket Material FEP
.

Connector Characteristics

Description Connector 1 Connector 2
Type BNC Male SMA Female Bulkhead
Specification MIL-PRF-39012 MIL-PRF-39012
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Beryllium Copper, Gold
Contact Plating Specification MIL-G-45204 ASTM B488
Dielectric Type Teflon Teflon
Outer Conductor Material and Plating Steel, Passivated
Outer Conductor Plating Specification QQ-P-35
Body Material and Plating Brass, Silver Steel, Passivated
Body Plating Specification QQ-S-365 QQ-P-35
Coupling Nut Material and Plating Steel, Passivated
Coupling Nut Plating Specification QQ-P-35
Seal Gasket Material Silicone Rubber Silicone Rubber
Contact Gage Specification 0.210 to 0.230 in 0.000 to 0.010 in
Insulator Gage Specification 0.208 to 0.228 in 0.000 in min
.
Mechanical Specification Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: MIL-DTL-17 BNC Male to SMA Female Bulkhead Cable Using M17/113-RG316 Coax
PE3M0088 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3M0088 REV 1 3
