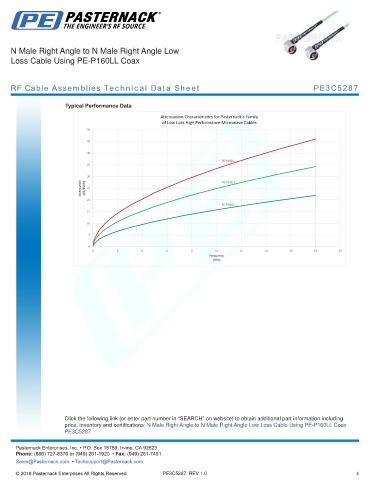

N Male Right Angle to N Male Right Angle Low
Loss Cable Using PE-P160LL Coax
RF Cable Assemblies Technical Data Sheet PE3C5287
Typical Performance Data
Attenuation Characteristics for Pasternack's Family
of Low Loss High Performance Microwave Cables
50
45
40
PE-P160LL
35
30 PE-P142LL
Attenuation (dB/100ft) 25
20
PE-P300LL
15
10
5
0
0 2 4 6 8 10 12 14 16 18 20
Frequency
(GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Male Right Angle to N Male Right Angle Low Loss Cable Using PE-P160LL Coax
PE3C5287 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE3C5287 REV 1.0 4
