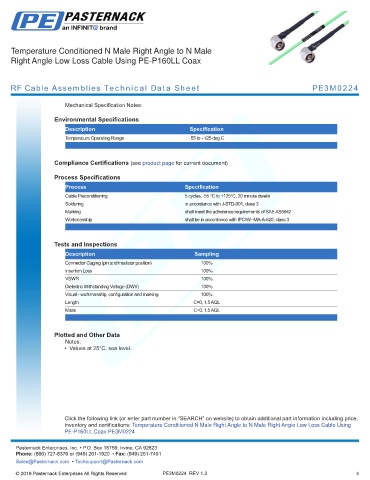

Temperature Conditioned N Male Right Angle to N Male
Right Angle Low Loss Cable Using PE-P160LL Coax
RF Cable Assemblies Technical Data Sheet PE3M0224
Mechanical Specification Notes:
Environmental Specifications
Description Specification
Temperature Operating Range -55 to +125 deg C
.
Compliance Certifications (see product page for current document)
Process Specifications
Process Specification
Cable Preconditioning 5 cycles, -55 °C to +125°C, 20 minute dwells
Soldering in accordance with J-STD-001, class 3
Marking shall meet the adherence requirements of SAE AS5942
Workmanship shall be in accordance with IPC/WHMA-A-620, class 3
.
Tests and Inspections
Description Sampling
Connector Gaging (pin and insulator position) 100%
Insertion Loss 100%
VSWR 100%
Dielectric Withstanding Voltage (DWV) 100%
Visual - workmanship, configuration and marking 100%
Length C=0, 1.5 AQL
Mass C=0, 1.5 AQL
.
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Temperature Conditioned N Male Right Angle to N Male Right Angle Low Loss Cable Using
PE-P160LL Coax PE3M0224 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE3M0224 REV 1.2 4
