Page 2802 - BNC to N RF Cable Assembly Datasheets
P. 2802

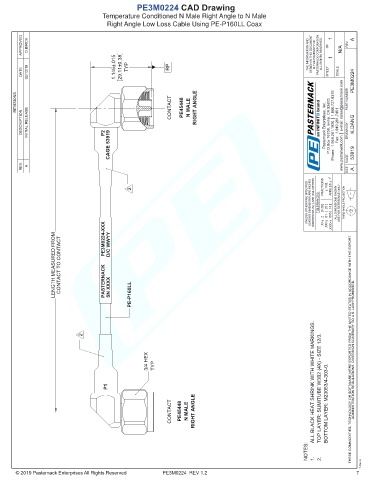

PE3M0224 CAD Drawing
Temperature Conditioned N Male Right Angle to N Male
Right Angle Low Loss Cable Using PE-P160LL Coax
APPROVED D.BIRCH THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A
DATE 02/12/19 1.146±.015 29.11±0.38 TYP RP SHEET OF SCALE PE3M0224
REVISIONS CONTACT PE45448 N MALE RIGHT ANGLE PART NUMBER
DESCRIPTION INITIAL RELEASE P2 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG
CAGE 53919 CAGE 53919
REV. A SIZE A
UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
2 FRACTIONS ± 1/32 ANGLES ± 1°
LENGTH MEASURED FROM CONTACT TO CONTACT PASTERNACK PE3M0224-XXX SN XXXX D/C WWYY PE-P160LL
2
3/4 HEX TYP THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
P1 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3.
CONTACT PE45448 N MALE RIGHT ANGLE BOTTOM LAYER: M23053/4-303-0.
Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
NOTES:
2.
1.
T-Rev.A
PE3M0224 REV 1.2 7
