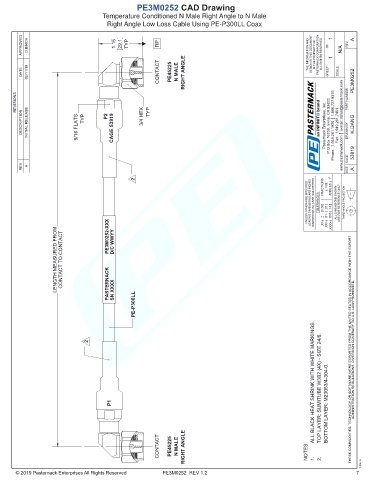

PE3M0252 CAD Drawing
Temperature Conditioned N Male Right Angle to N Male
Right Angle Low Loss Cable Using PE-P300LL Coax

APPROVED D.BIRCH 1.15 29.1 TYP RP THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 02/11/19 CONTACT PE45225 N MALE RIGHT ANGLE SHEET OF SCALE PE3M0252

REVISIONS TYP PART NUMBER

DESCRIPTION INITIAL RELEASE 9/16 FLATS TYP P2 CAGE 53919 3/4 HEX Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

REV. A CAGE SIZE 53919 A

2 FRACTIONS ± 1/32 ANGLES ± 1°
UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM CONTACT TO CONTACT PASTERNACK PE3M0252-XXX SN XXXX D/C WWYY

PE-P300LL

2 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

BOTTOM LAYER: M23053/4-304-0.

P1 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 24/6.

Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -
CONTACT PE45225 N MALE RIGHT ANGLE NOTES: 1. 2.

PE3M0252 REV 1.2 7 T-Rev.A
