MIL-DTL-17 BNC Male to SMA Male Cable
Using M17/113-RG316 Coax

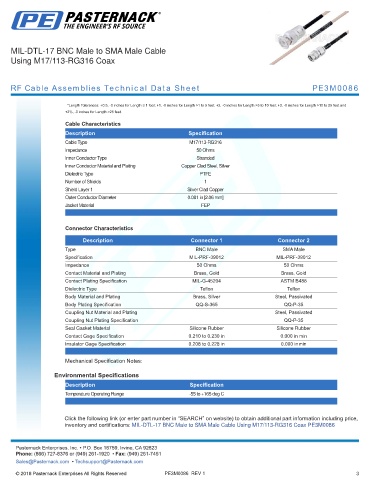

RF Cable Assemblies Technical Data Sheet PE3M0086

*Length Tolerances: +0.5, -0 inches for Length ≤ 1 foot; +1, -0 inches for Length >1 to 5 feet; +2, -0 inches for Length >5 to 10 feet; +3, -0 inches for Length >10 to 25 feet and
+2%, -0 inches for Length >25 feet.

Cable Characteristics
Description Specification
Cable Type M17/113-RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Clad Copper
Outer Conductor Diameter 0.081 in [2.06 mm]
Jacket Material FEP
.

Connector Characteristics

Description Connector 1 Connector 2
Type BNC Male SMA Male
Specification MIL-PRF-39012 MIL-PRF-39012
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification MIL-G-45204 ASTM B488
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Silver Steel, Passivated
Body Plating Specification QQ-S-365 QQ-P-35
Coupling Nut Material and Plating Steel, Passivated
Coupling Nut Plating Specification QQ-P-35
Seal Gasket Material Silicone Rubber Silicone Rubber
Contact Gage Specification 0.210 to 0.230 in 0.000 in min
Insulator Gage Specification 0.208 to 0.228 in 0.000 in min
.
Mechanical Specification Notes:
Environmental Specifications

Description Specification
Temperature Operating Range -55 to +165 deg C
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MIL-DTL-17 BNC Male to SMA Male Cable Using M17/113-RG316 Coax PE3M0086
-
