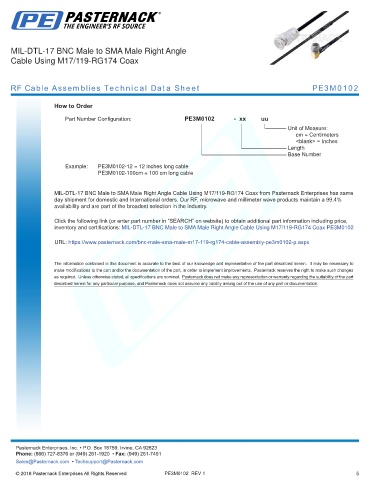

MIL-DTL-17 BNC Male to SMA Male Right Angle
Cable Using M17/119-RG174 Coax

RF Cable Assemblies Technical Data Sheet PE3M0102

How to Order

Part Number Configuration: PE3M0102 - xx uu
| | | | | Unit of Measure:
| | cm = Centimeters
<blank> = Inches
| | Length
Base Number

Example: PE3M0102-12 = 12 inches long cable
PE3M0102-100cm = 100 cm long cable

MIL-DTL-17 BNC Male to SMA Male Right Angle Cable Using M17/119-RG174 Coax from Pasternack Enterprises has same
day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99.4%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MIL-DTL-17 BNC Male to SMA Male Right Angle Cable Using M17/119-RG174 Coax PE3M0102

URL: https://www.pasternack.com/bnc-male-sma-male-m17-119-rg174-cable-assembly-pe3m0102-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3M0102 REV 1 5
