MIL-DTL-17 BNC Male to SMA Male Right Angle
Cable Using M17/60-RG142 Coax

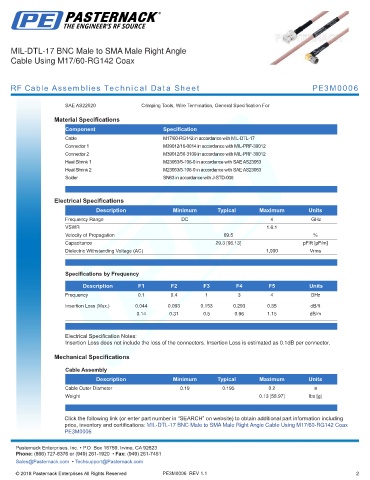

RF Cable Assemblies Technical Data Sheet PE3M0006

SAE AS22520 Crimping Tools, Wire Termination, General Specification For

Material Specifications
Component Specification
Cable M17/60-RG142 in accordance with MIL-DTL-17
Connector 1 M39012/16-0014 in accordance with MIL-PRF-39012
Connector 2 M39012/56-3109 in accordance with MIL-PRF-39012
Heat Shrink 1 M23053/5-106-0 in accordance with SAE AS23053
Heat Shrink 2 M23053/5-106-0 in accordance with SAE AS23053
Solder SN63 in accordance with J-STD-006
.
Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.6:1
Velocity of Propagation 69.5 %
Capacitance 29.3 [96.13] pF/ft [pF/m]
Dielectric Withstanding Voltage (AC) 1,000 Vrms

.
Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.4 1 3 4 GHz
Insertion Loss (Max.) 0.044 0.093 0.153 0.293 0.35 dB/ft
0.14 0.31 0.5 0.96 1.15 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1dB per connector.

Mechanical Specifications

Cable Assembly
Description Minimum Typical Maximum Units
Cable Outer Diameter 0.19 0.195 0.2 in
Weight 0.13 [58.97] lbs [g]

.
