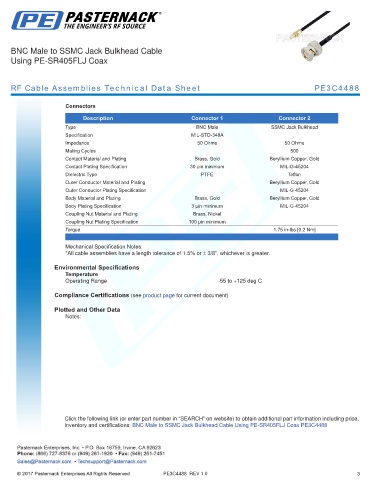

BNC Male to SSMC Jack Bulkhead Cable
Using PE-SR405FLJ Coax

RF Cable Assemblies Technical Data Sheet PE3C4488

Connectors

Description Connector 1 Connector 2
Type BNC Male SSMC Jack Bulkhead
Specification MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Mating Cycles 500
Contact Material and Plating Brass, Gold Beryllium Copper, Gold
Contact Plating Specification 30 µin minimum MIL-G-45204
Dielectric Type PTFE Teflon
Outer Conductor Material and Plating Beryllium Copper, Gold
Outer Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Gold Beryllium Copper, Gold
Body Plating Specification 3 µin minimum MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100 µin minimum
Torque 1.75 in-lbs [0.2 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to SSMC Jack Bulkhead Cable Using PE-SR405FLJ Coax PE3C4488

PE3C4488 REV 1.0 3
