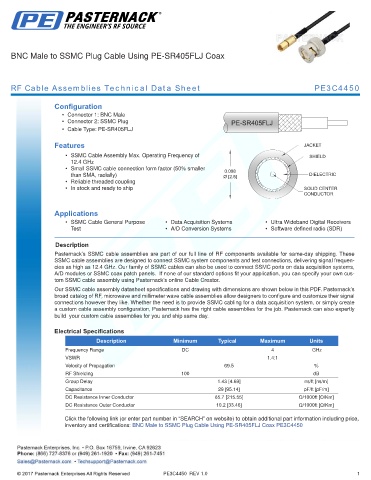

BNC Male to SSMC Plug Cable Using PE-SR405FLJ Coax

RF Cable Assemblies Technical Data Sheet PE3C4450

Configuration
• Connector 1: BNC Male
• Connector 2: SSMC Plug
• Cable Type: PE-SR405FLJ

Features
• SSMC Cable Assembly Max. Operating Frequency of
12.4 GHz
• Small SSMC cable connection form factor (50% smaller
than SMA, radially)
• Reliable threaded coupling
• In stock and ready to ship

Applications
• SSMC Cable General Purpose • Data Acquisition Systems • Ultra Wideband Digital Receivers
Test • A/D Conversion Systems • Software defined radio (SDR)
.
Description
Pasternack’s SSMC cable assemblies are part of our full line of RF components available for same-day shipping. These
SSMC cable assemblies are designed to connect SSMC system components and test connections, delivering signal frequen-
cies as high as 12.4 GHz. Our family of SSMC cables can also be used to connect SSMC ports on data acquisition systems,
A/D modules or SSMC coax patch panels. If none of our standard options fit your application, you can specify your own cus-
tom SSMC cable assembly using Pasternack’s online Cable Creator.
Our SSMC cable assembly datasheet specifications and drawing with dimensions are shown below in this PDF. Pasternack’s
broad catalog of RF, microwave and millimeter wave cable assemblies allow designers to configure and customize their signal
connections however they like. Whether the need is to provide SSMC cabling for a data acquisition system, or simply create
a custom cable assembly configuration, Pasternack has the right cable assemblies for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.4:1
Velocity of Propagation 69.5 %
RF Shielding 100 dB
Group Delay 1.43 [4.69] ns/ft [ns/m]
Capacitance 29 [95.14] pF/ft [pF/m]
DC Resistance Inner Conductor 65.7 [215.55] Ω/1000ft [Ω/Km]
DC Resistance Outer Conductor 10.2 [33.46] Ω/1000ft [Ω/Km]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to SSMC Plug Cable Using PE-SR405FLJ Coax PE3C4450

PE3C4450 REV 1.0 1
