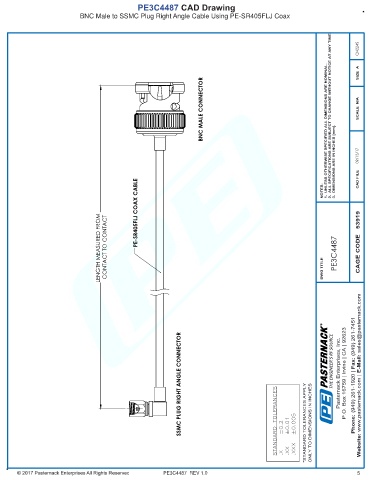

PE3C4487 CAD Drawing
BNC Male to SSMC Plug Right Angle Cable Using PE-SR405FLJ Coax
CN2245
SIZE A
BNC MALE CONNECTOR UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
DIMENSIONS ARE IN INCHES [mm]. 2. 3. 09/13/17 CAD FILE
NOTES:
1.
LENGTH MEASURED FROM CONTACT TO CONTACT PE-SR405FLJ COAX CABLE DWG TITLE PE3C4487 CAGE CODE 53919
R
SSMC PLUG RIGHT ANGLE CONNECTOR STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
PE3C4487 REV 1.0 .X ±0.2 .XX ±0.01 .XXX ±0.005 5
