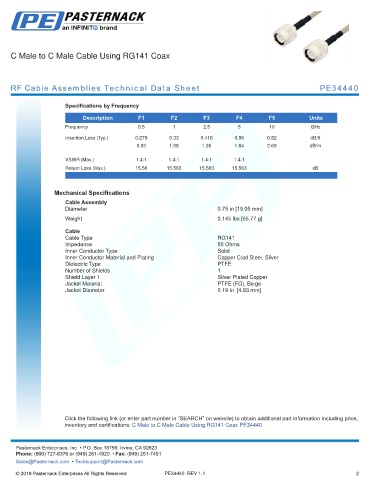

C Male to C Male Cable Using RG141 Coax

RF Cable Assemblies Technical Data Sheet PE34440

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 2.5 5 10 GHz
Insertion Loss (Typ.) 0.279 0.33 0.416 0.56 0.82 dB/ft
0.92 1.08 1.36 1.84 2.69 dB/m

VSWR (Max.) 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss (Max.) 15.56 15.563 15.563 15.563 dB
.

Mechanical Specifications
Cable Assembly
Diameter 0.75 in [19.05 mm]
.
Weight 0.145 lbs [65.77 g]
Cable
Cable Type RG141
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper
Jacket Material PTFE (FG), Beige
Jacket Diameter 0.19 in [4.83 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Male to C Male Cable Using RG141 Coax PE34440
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE34440 REV 1.1 2
