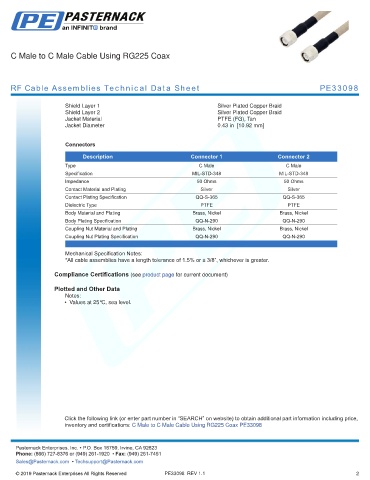

C Male to C Male Cable Using RG225 Coax

RF Cable Assemblies Technical Data Sheet PE33098

Shield Layer 1 Silver Plated Copper Braid
Shield Layer 2 Silver Plated Copper Braid
Jacket Material PTFE (FG), Tan
Jacket Diameter 0.43 in [10.92 mm]
.

Connectors

Description Connector 1 Connector 2
Type C Male C Male
Specification MIL-STD-348 MIL-STD-348
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Silver Silver
Contact Plating Specification QQ-S-365 QQ-S-365
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification QQ-N-290 QQ-N-290
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Plating Specification QQ-N-290 QQ-N-290
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Male to C Male Cable Using RG225 Coax PE33098
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE33098 REV 1.1 2
