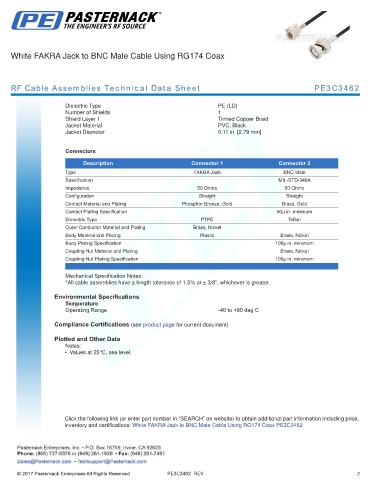

White FAKRA Jack to BNC Male Cable Using RG174 Coax
RF Cable Assemblies Technical Data Sheet PE3C3462
Dielectric Type PE (LD)
Number of Shields 1
Shield Layer 1 Tinned Copper Braid
Jacket Material PVC, Black
Jacket Diameter 0.11 in [2.79 mm]
.
Connectors
Description Connector 1 Connector 2
Type FAKRA Jack BNC Male
Specification MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Configuration Straight Straight
Contact Material and Plating Phosphor Bronze, Gold Brass, Gold
Contact Plating Specification 50µ in. minimum
Dielectric Type PTFE Teflon
Outer Conductor Material and Plating Brass, Nickel
Body Material and Plating Plastic Brass, Nickel
Body Plating Specification 100µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Environmental Specifications
Temperature
Operating Range -40 to +80 deg C
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: White FAKRA Jack to BNC Male Cable Using RG174 Coax PE3C3462
PE3C3462 REV 2
