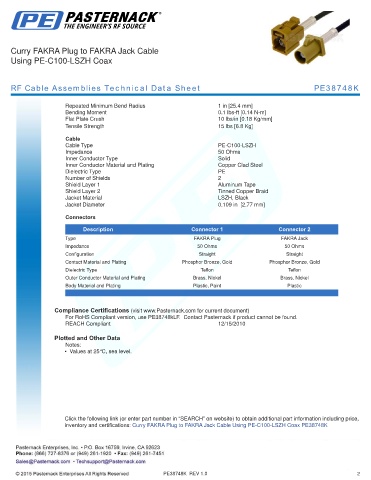

Curry FAKRA Plug to FAKRA Jack Cable
Using PE-C100-LSZH Coax

RF Cable Assemblies Technical Data Sheet PE38748K

Repeated Minimum Bend Radius 1 in [25.4 mm]
Bending Moment 0.1 lbs-ft [0.14 N-m]
Flat Plate Crush 10 lbs/in [0.18 Kg/mm]
Tensile Strength 15 lbs [6.8 Kg]

Cable
Cable Type PE-C100-LSZH
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel
Dielectric Type PE
Number of Shields 2
Shield Layer 1 Aluminum Tape
Shield Layer 2 Tinned Copper Braid
Jacket Material LSZH, Black
Jacket Diameter 0.109 in [2.77 mm]

Connectors
Description Connector 1 Connector 2
Type FAKRA Plug FAKRA Jack
Impedance 50 Ohms 50 Ohms
Configuration Straight Straight
Contact Material and Plating Phosphor Bronze, Gold Phosphor Bronze, Gold
Dielectric Type Teflon Teflon
Outer Conductor Material and Plating Brass, Nickel Brass, Nickel
Body Material and Plating Plastic, Paint Plastic
.

Compliance Certifications (visit www.Pasternack.com for current document)
For RoHS Compliant version, use PE38748kLF. Contact Pasternack if product cannot be found.
REACH Compliant 12/15/2010

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Curry FAKRA Plug to FAKRA Jack Cable Using PE-C100-LSZH Coax PE38748K
