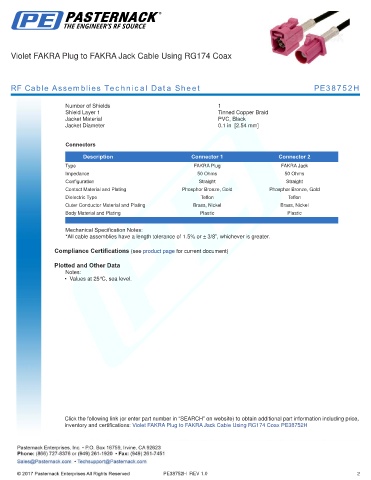

Violet FAKRA Plug to FAKRA Jack Cable Using RG174 Coax

RF Cable Assemblies Technical Data Sheet PE38752H

Number of Shields 1
Shield Layer 1 Tinned Copper Braid
Jacket Material PVC, Black
Jacket Diameter 0.1 in [2.54 mm]
.

Connectors

Description Connector 1 Connector 2
Type FAKRA Plug FAKRA Jack
Impedance 50 Ohms 50 Ohms
Configuration Straight Straight
Contact Material and Plating Phosphor Bronze, Gold Phosphor Bronze, Gold
Dielectric Type Teflon Teflon
Outer Conductor Material and Plating Brass, Nickel Brass, Nickel
Body Material and Plating Plastic Plastic
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Violet FAKRA Plug to FAKRA Jack Cable Using RG174 Coax PE38752H

PE38752H REV 1.0 2
