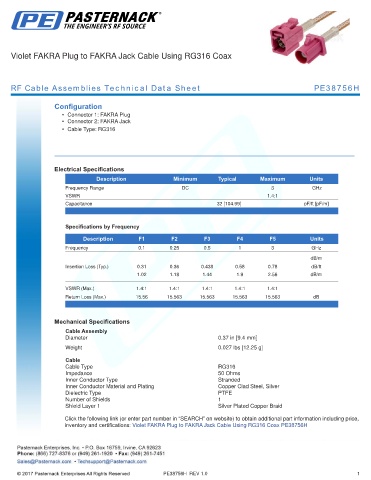

Violet FAKRA Plug to FAKRA Jack Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE38756H

Configuration
• Connector 1: FAKRA Plug
• Connector 2: FAKRA Jack
• Cable Type: RG316

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.4:1
Capacitance 32 [104.99] pF/ft [pF/m]
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.25 0.5 1 3 GHz
dB/m
Insertion Loss (Typ.) 0.31 0.36 0.438 0.58 0.78 dB/ft
1.02 1.18 1.44 1.9 2.56 dB/m

VSWR (Max.) 1.4:1 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss (Max.) 15.56 15.563 15.563 15.563 15.563 dB
.

Mechanical Specifications
Cable Assembly
Diameter 0.37 in [9.4 mm]
.
Weight 0.027 lbs [12.25 g]

Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Violet FAKRA Plug to FAKRA Jack Cable Using RG316 Coax PE38756H

PE38756H REV 1.0 1
