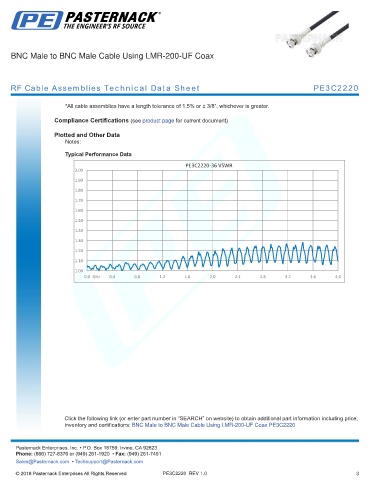

BNC Male to BNC Male Cable Using LMR-200-UF Coax

RF Cable Assemblies Technical Data Sheet PE3C2220

*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Typical Performance Data
PE3C2220-36 VSWR
2.00

1.90
1.80
1.70
1.60
1.50
1.40
1.30
1.20
1.10
1.00
0.0 GHz 0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2 3.6 4.0

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Cable Using LMR-200-UF Coax PE3C2220
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C2220 REV 1.0 3
