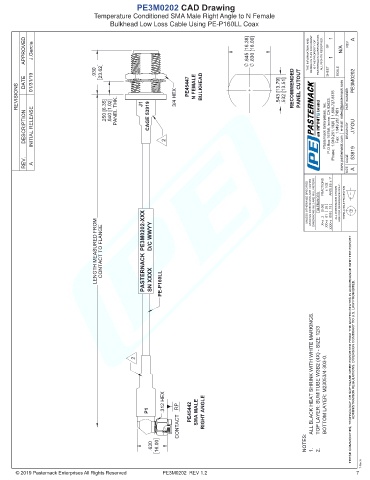

PE3M0202 CAD Drawing
Temperature Conditioned SMA Male Right Angle to N Female
Bulkhead Low Loss Cable Using PE-P160LL Coax

APPROVED J.Garcia .645 [16.38] .630 [16.00] THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1 1 N/A REV A

.930 23.62 SCALE
DATE 01/31/19 PE45447 N FEMALE BULKHEAD RECOMMENDED PANEL CUTOUT PE3M0202
REVISIONS .250 [6.35] .040 [1.02] PANEL THK. J1 3/4 HEX .543 [13.79] .532 [13.51] PART NUMBER

DESCRIPTION INITIAL RELEASE CAGE 53919 2 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM CONTACT TO FLANGE PE3M0202-XXX PASTERNACK D/C WWYY SN XXXX PE-P160LL

2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

.312 HEX TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3 BOTTOM LAYER: M23053/4-303-0.

P1 RP PE45442 SMA MALE RIGHT ANGLE
CONTACT -

Pasternack does not make

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
.630 16.00 NOTES: 1. 2.

T-Rev.A
PE3M0202 REV 1.2 7
