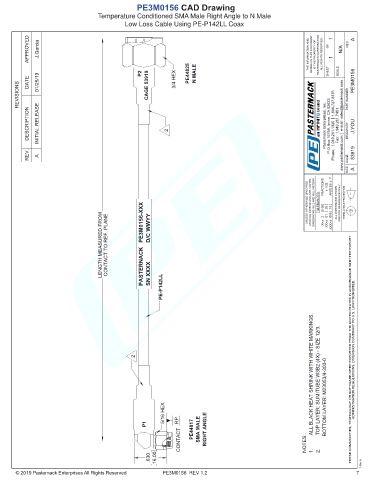

PE3M0156 CAD Drawing
Temperature Conditioned SMA Male Right Angle to N Male
Low Loss Cable Using PE-P142LL Coax

APPROVED J.Garcia THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1 1 SCALE N/A REV A

REVISIONS DATE 01/25/19 P2 CAGE 53919 3/4 HEX PE44825 N MALE PART NUMBER PE3M0156

DESCRIPTION INITIAL RELEASE 2 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A FRACTIONS ± 1/32 ANGLES ± 1° CAGE SIZE 53919 A

LENGTH MEASURED FROM CONTACT TO REF. PLANE PE3M0156-XXX D/C WWYY UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

PASTERNACK

SN XXXX
PE-P142LL

2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

5/16 HEX BOTTOM LAYER: M23053/4-303-0

P1 RP PE44817 SMA MALE RIGHT ANGLE -
CONTACT
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
NOTES: 1. 2.
.630 16.00

T-Rev.A
PE3M0156 REV 1.2 7
