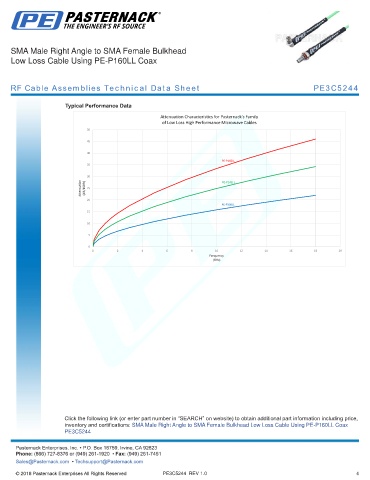

SMA Male Right Angle to SMA Female Bulkhead
Low Loss Cable Using PE-P160LL Coax
RF Cable Assemblies Technical Data Sheet PE3C5244
Typical Performance Data
Attenuation Characteristics for Pasternack's Family
of Low Loss High Performance Microwave Cables
50
45
40
PE-P160LL
35
30 PE-P142LL
Attenuation (dB/100ft) 25
20
PE-P300LL
15
10
5
0
0 2 4 6 8 10 12 14 16 18 20
Frequency
(GHz)
