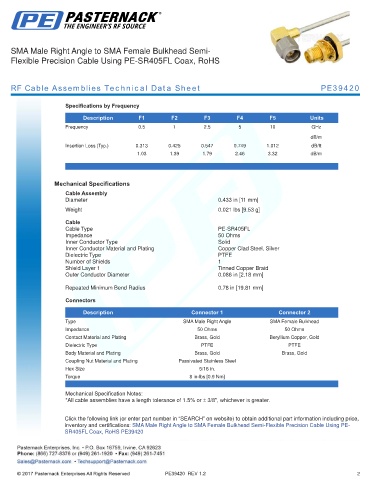

SMA Male Right Angle to SMA Female Bulkhead Semi-
Flexible Precision Cable Using PE-SR405FL Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE39420

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 2.5 5 10 GHz
dB/m
Insertion Loss (Typ.) 0.313 0.425 0.547 0.749 1.012 dB/ft
1.03 1.39 1.79 2.46 3.32 dB/m

.

Mechanical Specifications
Cable Assembly
Diameter 0.433 in [11 mm]
.
Weight 0.021 lbs [9.53 g]
Cable
Cable Type PE-SR405FL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Tinned Copper Braid
Outer Conductor Diameter 0.086 in [2.18 mm]
.
Repeated Minimum Bend Radius 0.78 in [19.81 mm]
Connectors

Description Connector 1 Connector 2
Type SMA Male Right Angle SMA Female Bulkhead
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Beryllium Copper, Gold
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Gold Brass, Gold
Coupling Nut Material and Plating Passivated Stainless Steel
Hex Size 5/16 in.
Torque 8 in-lbs [0.9 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Female Bulkhead Semi-Flexible Precision Cable Using PE-
SR405FL Coax, RoHS PE39420

PE39420 REV 1.2 2
