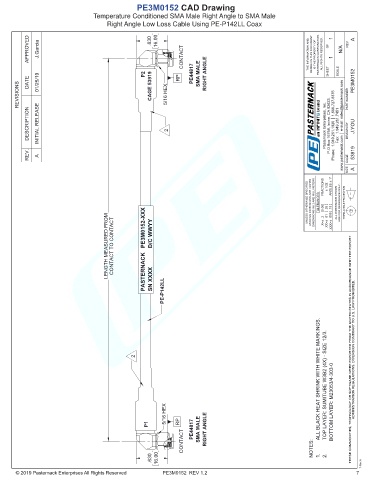

PE3M0152 CAD Drawing
Temperature Conditioned SMA Male Right Angle to SMA Male
Right Angle Low Loss Cable Using PE-P142LL Coax
1 A
APPROVED J.Garcia .630 16.00 CONTACT THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1 SCALE N/A REV
REVISIONS DATE 01/25/19 P2 CAGE 53919 5/16 HEX RP PE44817 SMA MALE RIGHT ANGLE PART NUMBER PE3M0152
DESCRIPTION INITIAL RELEASE 2 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU
REV. A CAGE SIZE 53919 A
UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] ANGLES ± 1° .005 [ .13 ] ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
LENGTH MEASURED FROM CONTACT TO CONTACT PE3M0152-XXX PASTERNACK D/C WWYY SN XXXX PE-P142LL .XX=± .XXX=±
2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
5/16 HEX BOTTOM LAYER: M23053/4-303-0
P1 RP PE44817 SMA MALE RIGHT ANGLE -
CONTACT
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
NOTES:
.630 16.00 1. 2.
T-Rev.A
PE3M0152 REV 1.2 7
