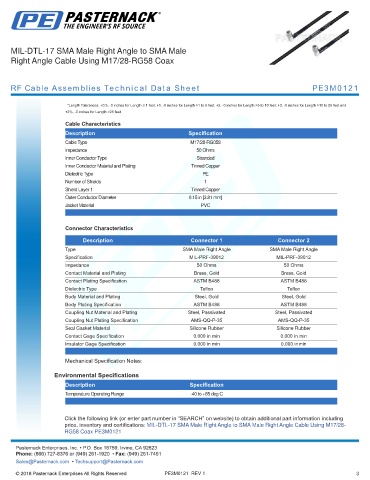

MIL-DTL-17 SMA Male Right Angle to SMA Male
Right Angle Cable Using M17/28-RG58 Coax
RF Cable Assemblies Technical Data Sheet PE3M0121
*Length Tolerances: +0.5, -0 inches for Length ≤ 1 foot; +1, -0 inches for Length >1 to 5 feet; +2, -0 inches for Length >5 to 10 feet; +3, -0 inches for Length >10 to 25 feet and
+2%, -0 inches for Length >25 feet.
Cable Characteristics
Description Specification
Cable Type M17/28-RG058
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Tinned Copper
Dielectric Type PE
Number of Shields 1
Shield Layer 1 Tinned Copper
Outer Conductor Diameter 0.15 in [3.81 mm]
Jacket Material PVC
.
Connector Characteristics
Description Connector 1 Connector 2
Type SMA Male Right Angle SMA Male Right Angle
Specification MIL-PRF-39012 MIL-PRF-39012
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification ASTM B488 ASTM B488
Dielectric Type Teflon Teflon
Body Material and Plating Steel, Gold Steel, Gold
Body Plating Specification ASTM B488 ASTM B488
Coupling Nut Material and Plating Steel, Passivated Steel, Passivated
Coupling Nut Plating Specification AMS-QQ-P-35 AMS-QQ-P-35
Seal Gasket Material Silicone Rubber Silicone Rubber
Contact Gage Specification 0.000 in min 0.000 in min
Insulator Gage Specification 0.000 in min 0.000 in min
.
Mechanical Specification Notes:
Environmental Specifications
Description Specification
Temperature Operating Range -40 to +85 deg C
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: MIL-DTL-17 SMA Male Right Angle to SMA Male Right Angle Cable Using M17/28-
RG58 Coax PE3M0121 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE3M0121 REV 1 3
