Page 2551 - NEX10 to SMA RF Cable Assembly Datasheets

SMA Male Right Angle to SSMC Plug
Right Angle Cable Using RG316 Coax

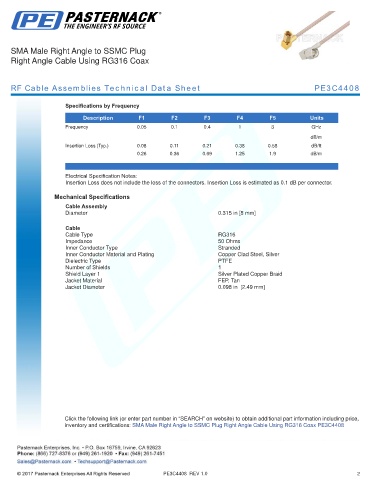

RF Cable Assemblies Technical Data Sheet PE3C4408

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.05 0.1 0.4 1 3 GHz
dB/m
Insertion Loss (Typ.) 0.08 0.11 0.21 0.38 0.58 dB/ft
0.26 0.36 0.69 1.25 1.9 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.315 in [8 mm]
.
Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.098 in [2.49 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SSMC Plug Right Angle Cable Using RG316 Coax PE3C4408

PE3C4408 REV 1.0 2
