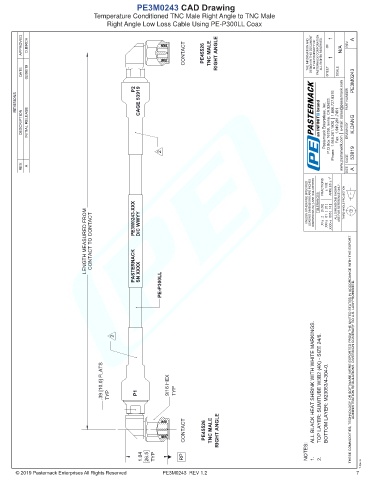

PE3M0243 CAD Drawing
Temperature Conditioned TNC Male Right Angle to TNC Male
Right Angle Low Loss Cable Using PE-P300LL Coax

APPROVED D.BIRCH CONTACT PE45526 TNC MALE RIGHT ANGLE THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 02/08/19 SHEET OF SCALE PE3M0243

P2
REVISIONS CAGE 53919 PART NUMBER

DESCRIPTION INITIAL RELEASE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

2 CAGE 53919
REV. A UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS ± 1/32 ANGLES ± 1° ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION SIZE A

LENGTH MEASURED FROM CONTACT TO CONTACT PASTERNACK PE3M0243-XXX SN XXXX D/C WWYY .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=±

PE-P300LL

2 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

.39 [10.0] FLATS TYP P1 9/16 HEX TYP ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 24/6. BOTTOM LAYER: M23053/4-304-0.

CONTACT PE45526 TNC MALE RIGHT ANGLE Pasternack does not make -

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

1.04 26.5 TYP RP NOTES: 1. 2.
T-Rev.A
PE3M0243 REV 1.2 7
