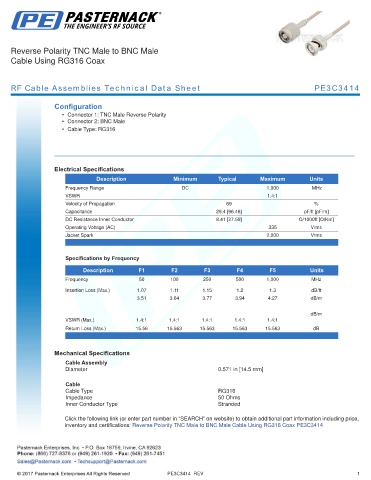

Reverse Polarity TNC Male to BNC Male
Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C3414

Configuration
• Connector 1: TNC Male Reverse Polarity
• Connector 2: BNC Male
• Cable Type: RG316

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.4:1
Velocity of Propagation 69 %
Capacitance 29.4 [96.46] pF/ft [pF/m]
DC Resistance Inner Conductor 8.41 [27.59] Ω/1000ft [Ω/Km]
Operating Voltage (AC) 335 Vrms
Jacket Spark 2,000 Vrms
.

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz
Insertion Loss (Max.) 1.07 1.11 1.15 1.2 1.3 dB/ft
3.51 3.64 3.77 3.94 4.27 dB/m

dB/m
VSWR (Max.) 1.4:1 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss (Max.) 15.56 15.563 15.563 15.563 15.563 dB
.

Mechanical Specifications
Cable Assembly
Diameter 0.571 in [14.5 mm]
.
Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Reverse Polarity TNC Male to BNC Male Cable Using RG316 Coax PE3C3414

PE3C3414 REV 1
